Details

Description

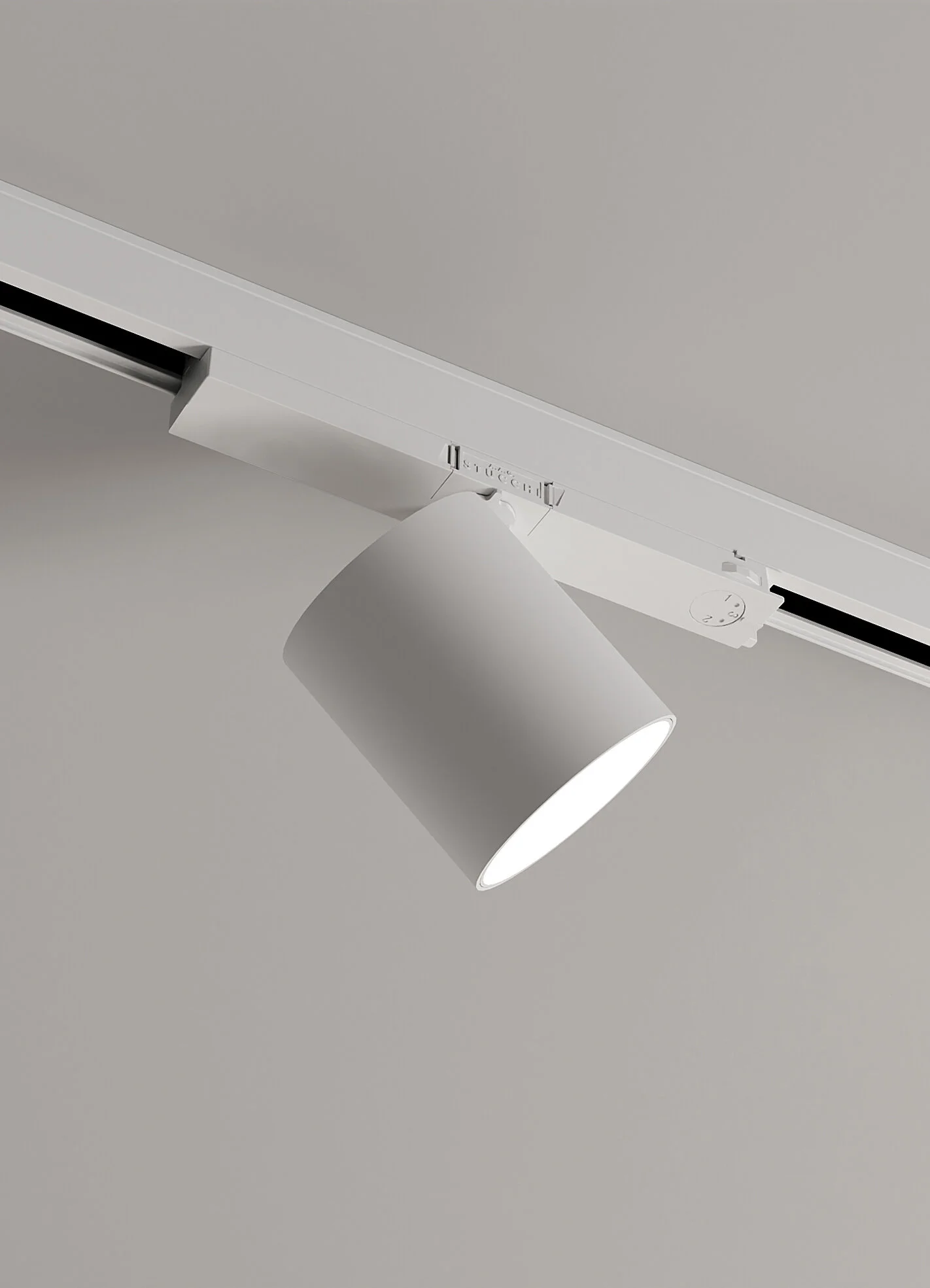

IP20 rated track-mounted light fi tting for indoor use. made of powder coated extruded oxidized aluminium consisting of diameter Ø85mm h.145mm spotlight, adjustable by 360° on the vertical axis and 90° on the horizontal axis, on track adapter. versions: econo track 01 with 96mm fully concealed adapter, 110-277V 50-60Hz power supply and potentiometer on board, econo track 02 with 170x61mm adapter and 110-277V 50-60Hz power supply and potentiometer on board, econo track 03 with 220x61mm adapter and 220-240V 50-60Hz dimmable dali power supply, compatible only with binario dali trifase Vbb. wired with led source 2700K or 3000K with les14 up to 37.8W 4180lm, 3200Vb K with les11 up to 25.9W 1990lm and with les15 up to 26,3W 2230lm. accessories: honeycomb louvre. optics: 15° 25° 33° fi nishes: bianco V, nero55.

Brand: Viabizzuno

Designer: Mario Nanni

Application: Indoor

Mounting: Track

Power and Output: 24.2W / 2776 Lm

Dimmable: Integrated potentiometer

Colour Temperature: 2700K / 3000K

CRI: >90

Rated Life: 50.000 Hours

Materials: Oxidised Aluminium

Finishes: White / Black

Dimensions: H 145 mm x 85mm dia ø
